ZPS-M Wide-Frequency Transformer

(Electric Submersible Pump)

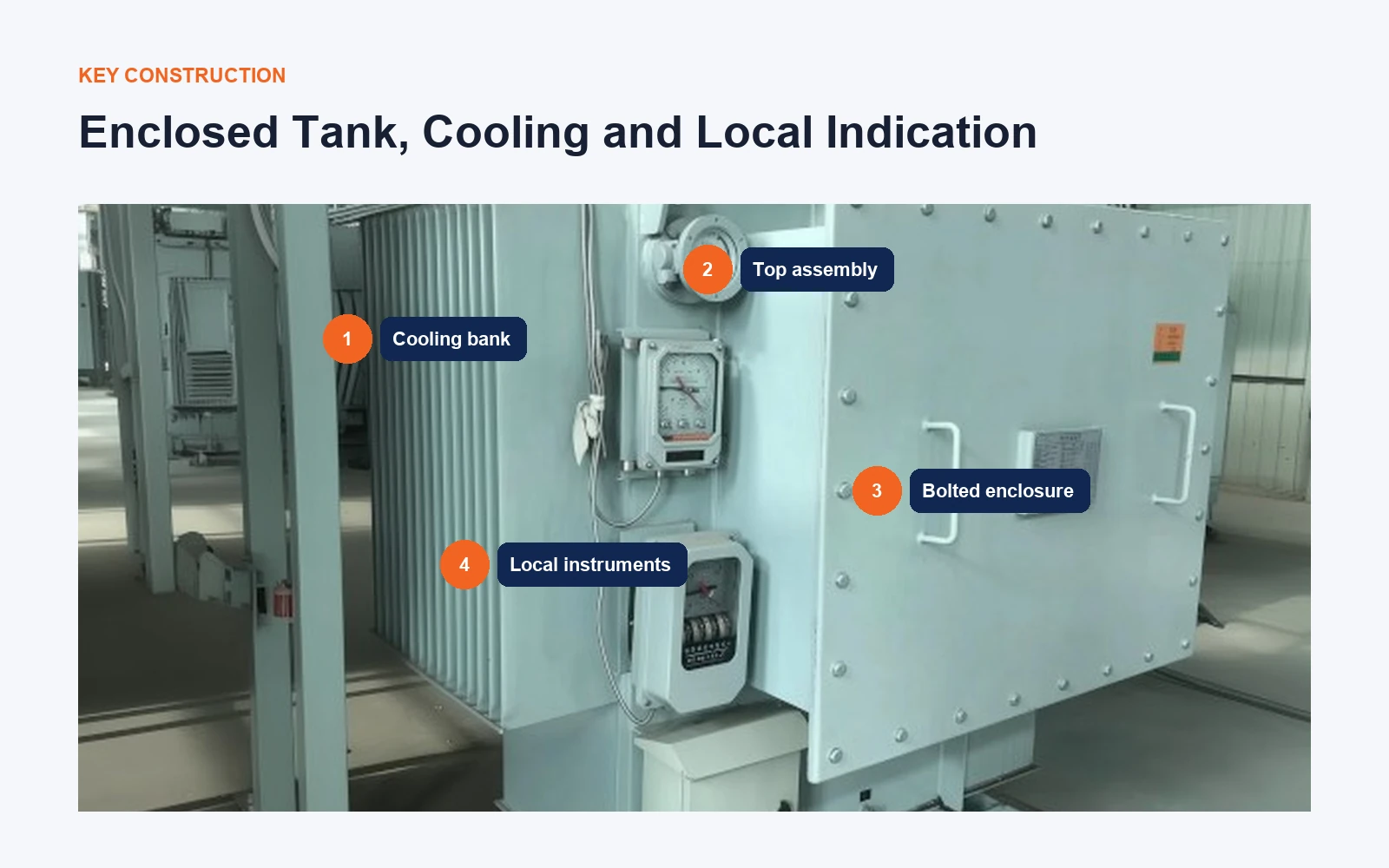

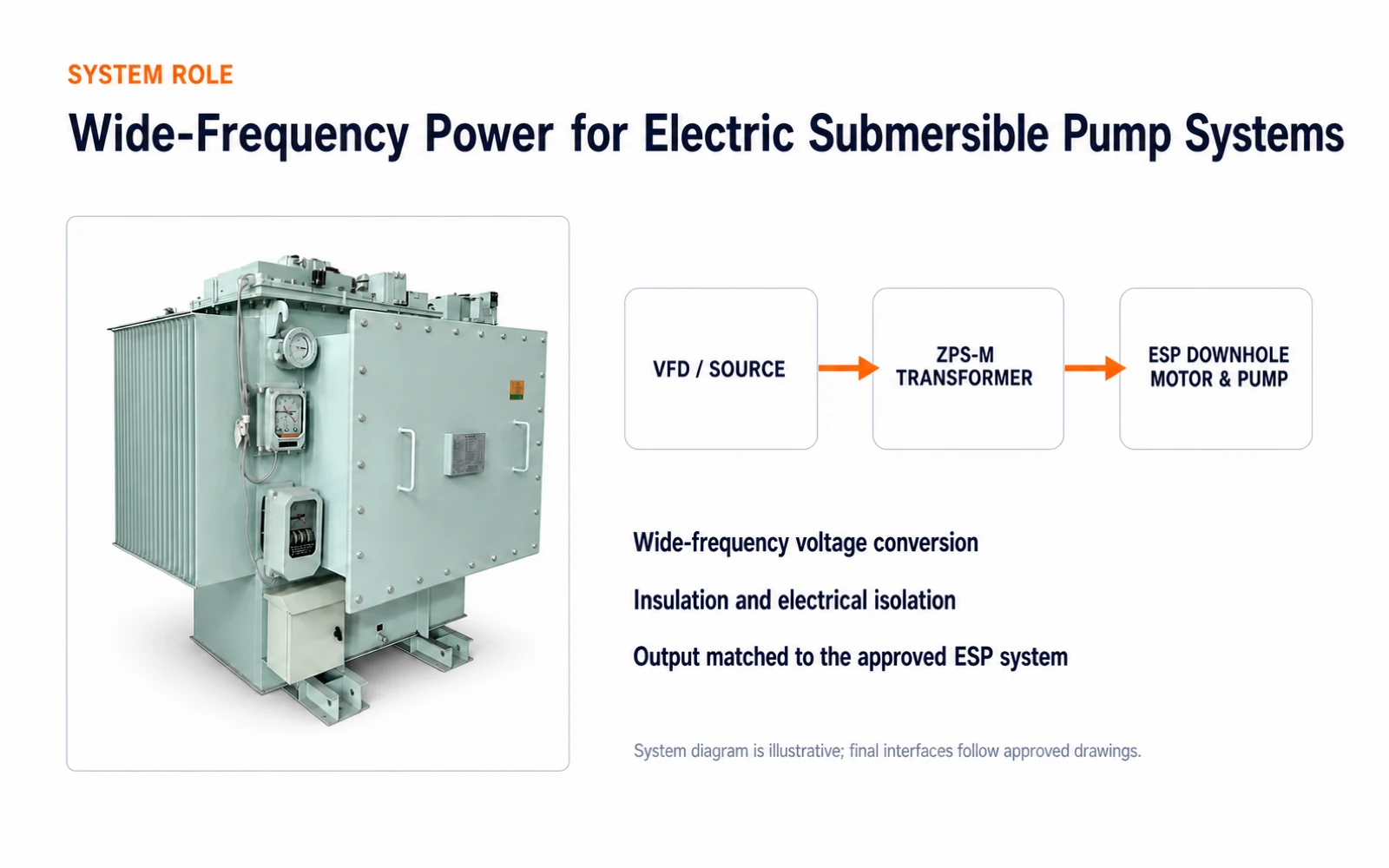

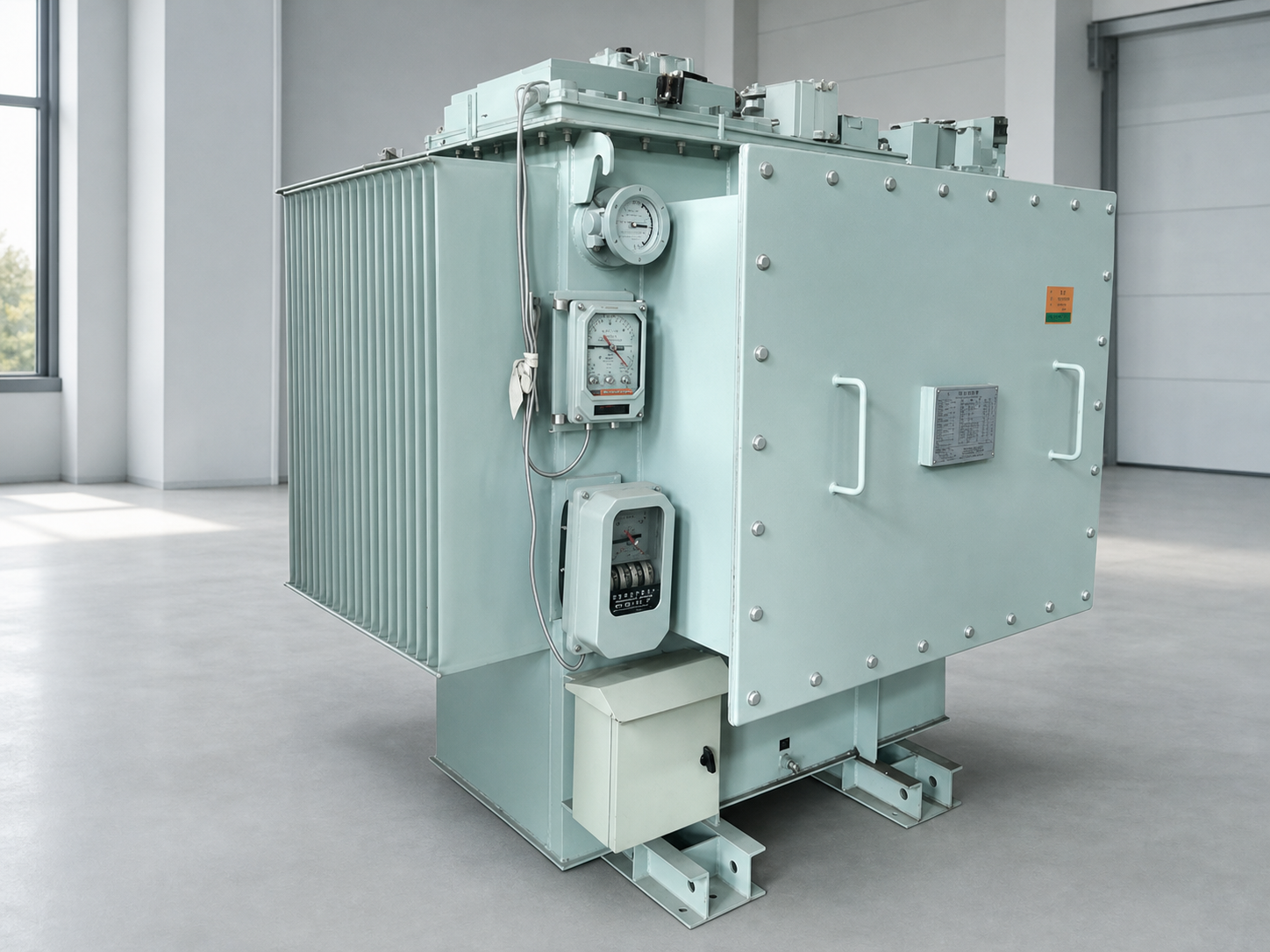

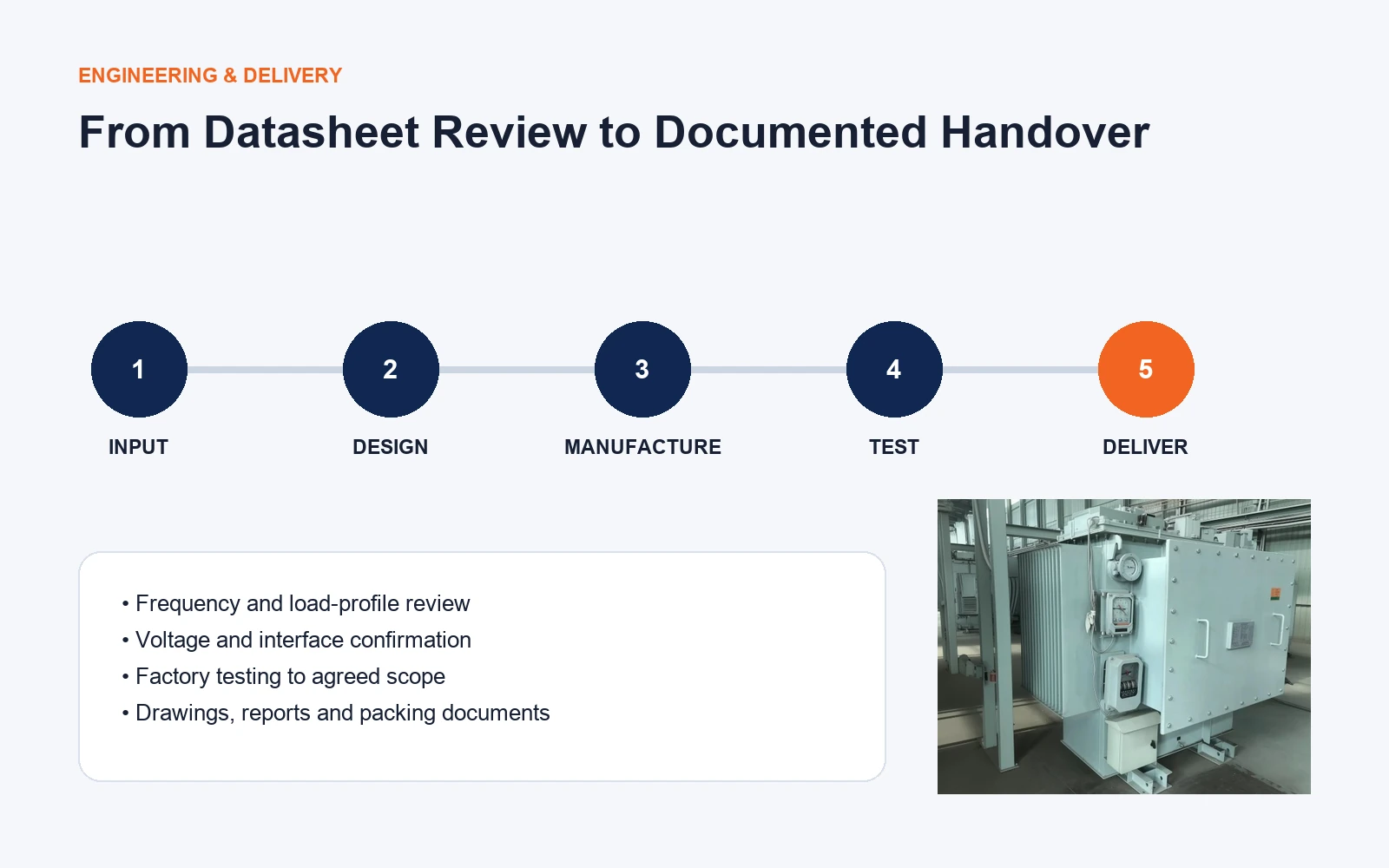

Complete three-quarter view of the ZPS-M wide-frequency transformer ZPS-M wide-frequency transformer supplying an electric submersible pump system from a VFD source ZPS-M 250 to 800 kVA and 10 to 80 Hz reference configuration ZPS-M transformer enclosure cooling bank and local instruments ZPS-M wide-frequency transformer operating conditions ZPS-M transformer engineering testing and delivery workflow

Six decision-focused images: product, system role, configuration, construction, operating conditions and delivery.

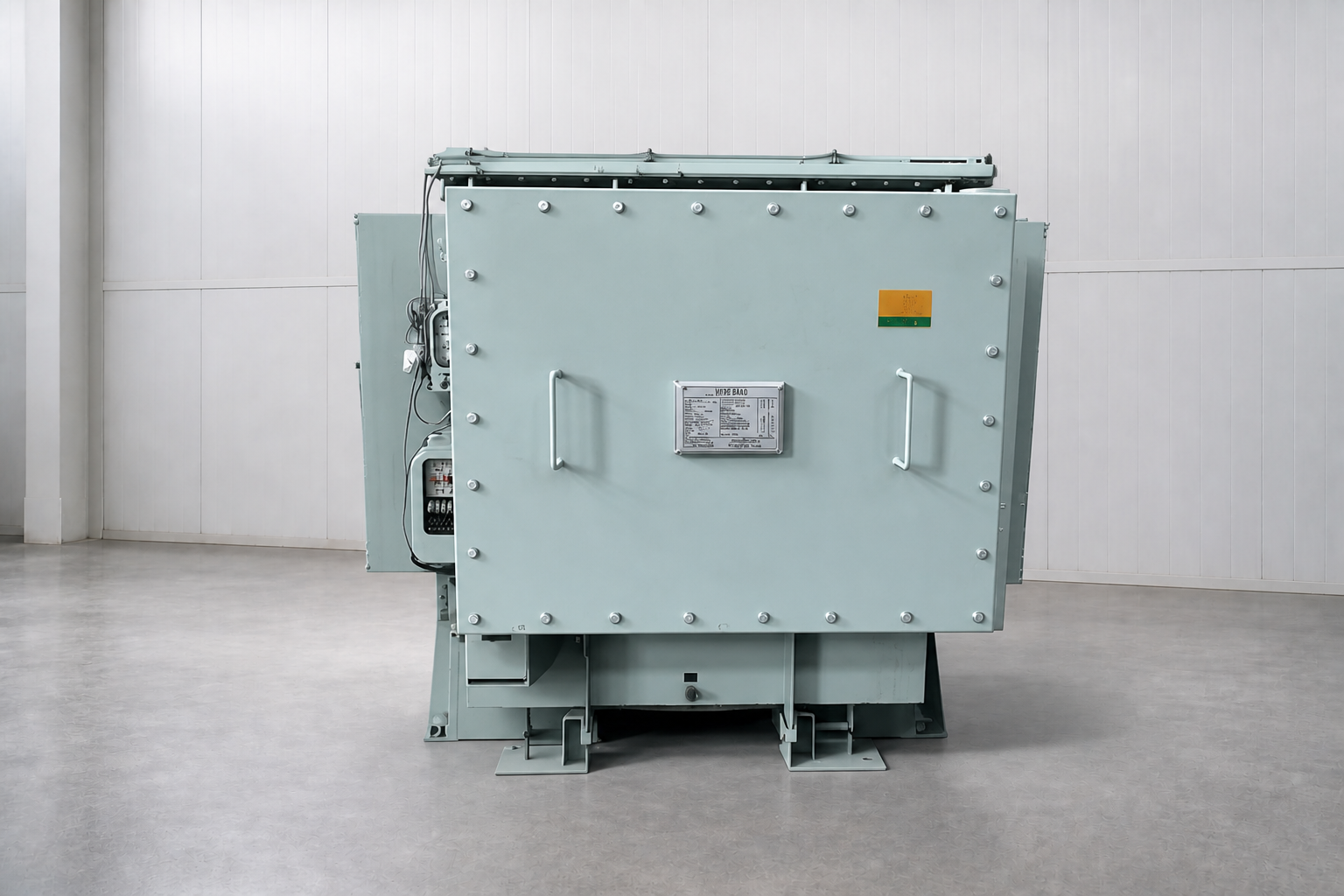

ZPS-M Wide-Frequency Transformer
Engineered for Electric Submersible Pump (ESP) Systems

ZPS-M is the catalog wide-frequency special-transformer series intended primarily for electric submersible pump (ESP) systems. With a 10–80 Hz reference duty, it provides voltage matching, electrical isolation and stable power between the upstream VFD source and the ESP downhole motor-and-pump load.

It is not a general-purpose fixed-frequency distribution transformer. Ratio, frequency range, load profile, harmonics, cooling and protection are confirmed against the project datasheet and approved drawings.

  • Reference models: ZPS-M-250/3.3 to ZPS-M-800/3.3
  • Reference ratings: 250 / 315 / 400 / 500 / 630 / 800 kVA
  • Catalog reference: 3.3 kV high side and 10–80 Hz duty
  • Low-voltage output and interfaces configured for the approved motor/VFD system

Reference Configuration
Subject to Approved Project Data

The ZPS-M catalog reference covers 250–800 kVA, 3.3 kV and 10–80 Hz. Low-voltage references include 1.1 / 0.38 / 0.69 / 2.4 / 4.2 kV, selected for the actual system.

These are series reference values, not a substitute for the project specification. Losses, impedance, temperature rise, dimensions and accessories are confirmed before manufacture.

  • Confirm VFD output frequency and continuous load envelope
  • Confirm source, transformer and motor voltage interfaces
  • Confirm ambient, altitude, harmonics and installation
  • Confirm test scope, documentation and packing requirements

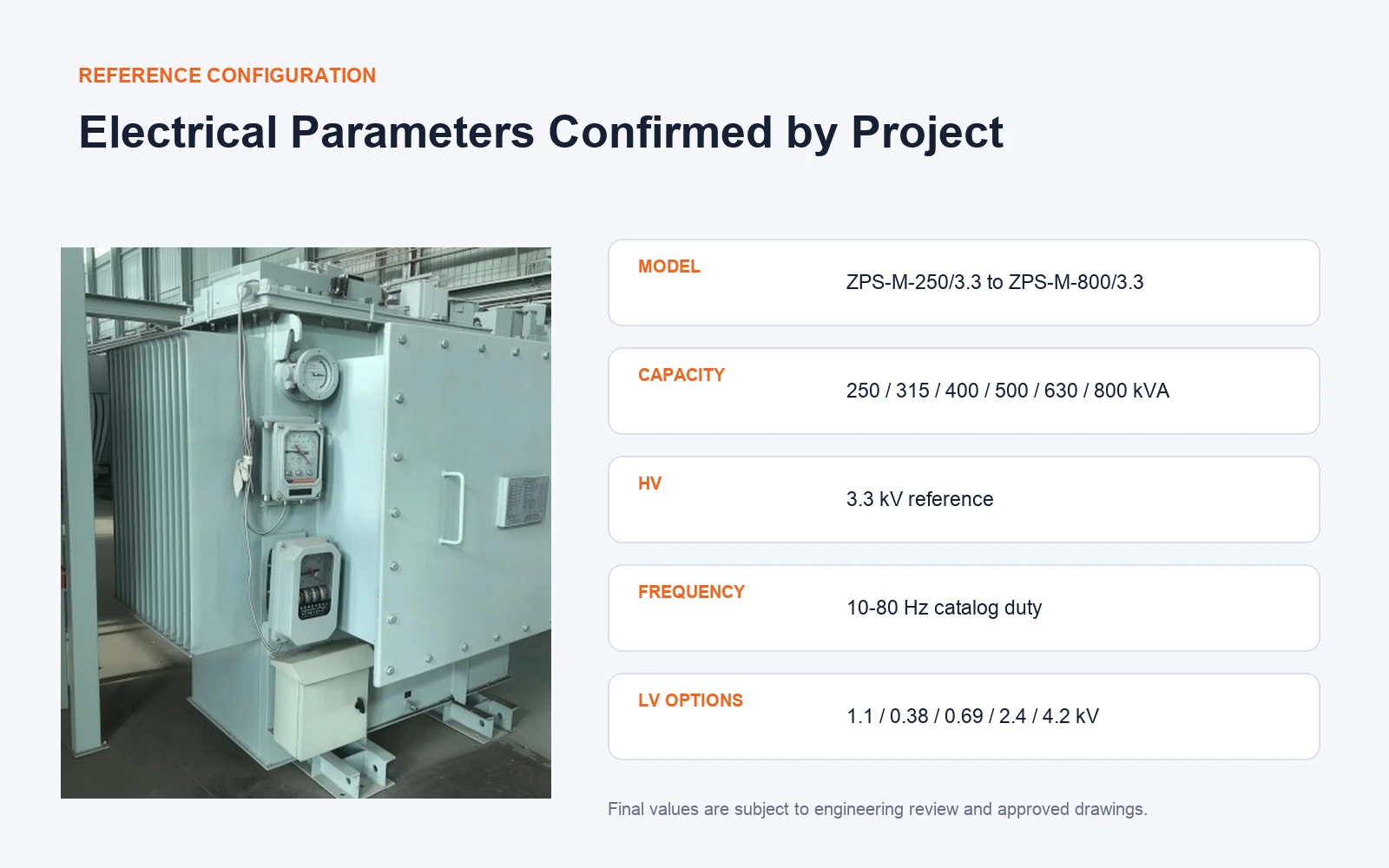

ZPS-M wide-frequency transformer reference electrical configuration

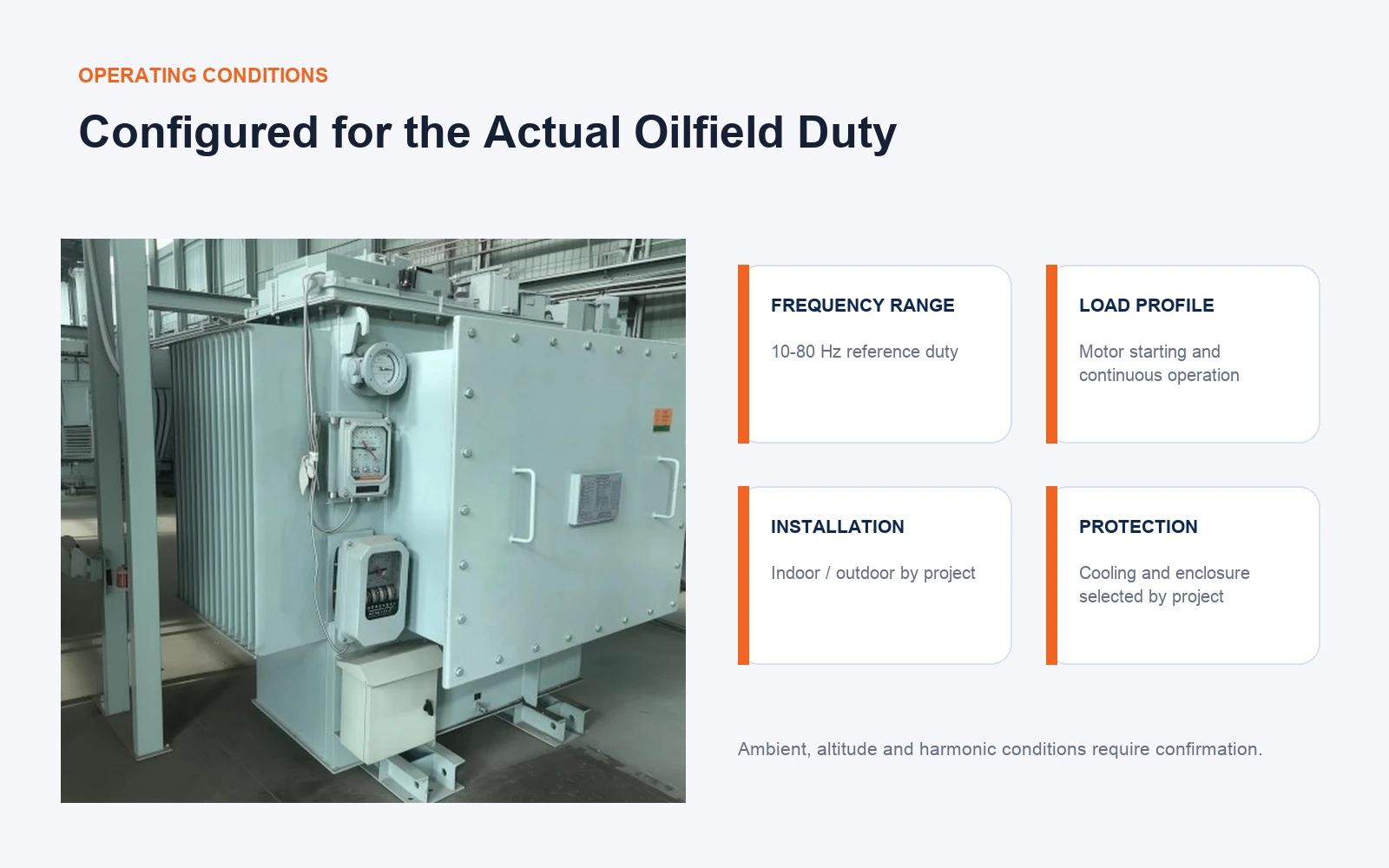

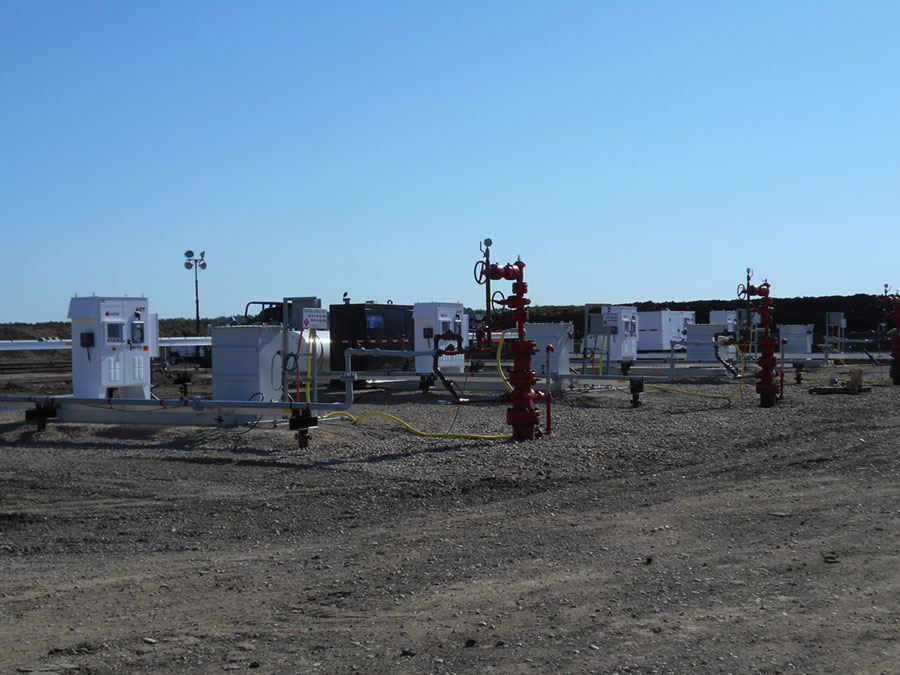

Project operating conditions considered for a ZPS-M ESP transformer

ESP System Duty

The transformer is configured around the approved electric submersible pump system, VFD output and wellsite operating envelope.

Environmental protection, cooling, insulation and enclosure details are selected from verified project data rather than assumed from a generic oilfield duty.

  • Confirm continuous frequency and ESP load profile
  • Confirm ambient temperature, altitude and installation
  • Confirm harmonic, cooling and insulation requirements
  • Confirm enclosure, monitoring and cable interfaces
